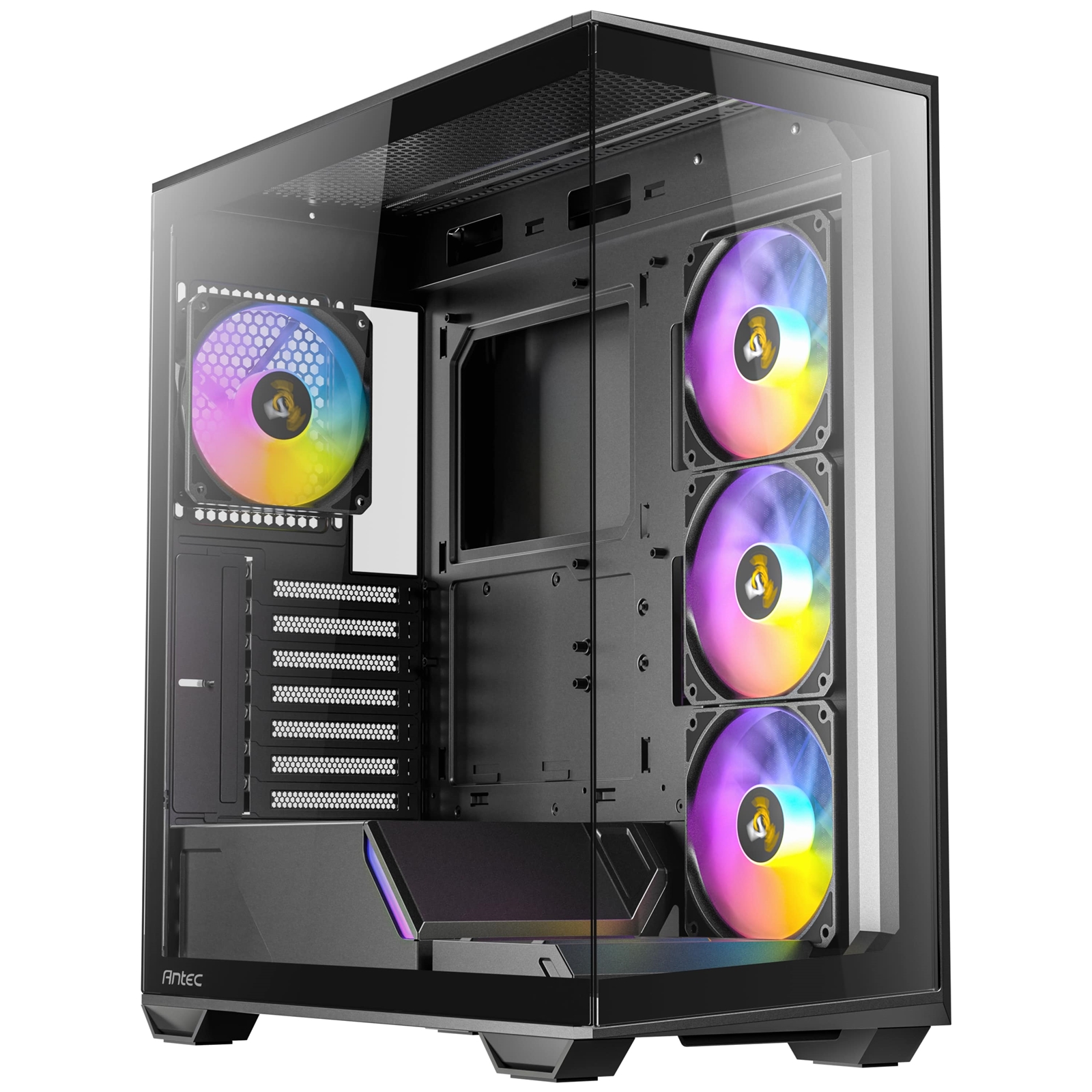

C3 BLACK ARGB CONSTELLATION SERIES
270° Full-View Tempered Glass
Seamless paneling design with full-view panoramic tempered glasses, providing a transparent and spacious feel. Inclined power supply shroud decorated with embellishing ARGB lighting strip also makes a mysterious vibe.
Massive Airflow Via Honeycomb Mesh
Top, bottom, and right side feature honeycomb mesh for smooth airflow and effective dust prevention.
Versatile Configuration
Multi Hard Drive Mode
Default (Removable HDD Cage)
High Airflow Mode
Optional (120mm reverse fan)
Pre-Installed 4 x ARGB PWM Fans With Built-In Fan Controller
3 reverse fans on the side provide massive air intake.
ARGB & PWM Fan Controller
Lighting effects could be switched by LED button or synchronized with motherboard.
1 X P12
120mm ARGB PWM regular fan.
3 X P12 Reverse
120mm ARGB PWN fans.
Ample Space For Water Cooling
Simultaneously supports top 360mm and side 240mm radiators.
Cooling Compatibility
Supports simultaneous installation of 8 x 120mm fans.
4 X Dust Filters
Three-sided dust protection with magnetic dust filters on the top, bottom and right side, along with another flat filter at the bottom, effectively preventing dust and easy to clean.
Tool-Free Design
Designed with drop-proof bolt, fixing slot, and fixing stud, the glass panels are convenient for hardware disassembly and cleaning.
Cable Management Space
23mm cable management space at the back side of motherboard.
I/O Panel
Equipped with Type-C 3.2 Gen 2 port for high-speed transmission.
Storage Capacity
HDD cage is removable; after removal, can install 1 x 120mm fan for enhanced cooling.
Specifications
Main Spec
Dimensions
470 x 210 x 485 mm (D x W xH)
Form Factor
Mid Tower
Materials
Steel, Plastic, Glass
Mainboard Support
ATX, Micro-ATX, ITX
Front Access & Controls
Power, LED Control Button, USB 3.0 x 1, Type-C 3.2 Gen 2 x 1, Headphone / Mic Combo Jack
Side Panel
4 mm Tempered Glass
Drive Bays
Expansion Slots
7
3.5" /2.5"
1
2.5"
3
Fan Support
Top
3 x 120 / 2 x 140 mm
Side
3 x 120 mm
Bottom
1 x 120 mm (Remove HDD Cage)
Rear
1 x 120 mm
Included Fan(s)
3 x 120 mm PWM ARGB reverse fans on right side + 1 x 120 mm PWM ARGB fan in rear
Radiator Support
Top
120 / 140 / 240 / 280 / 360 mm
Side
120 / 240 mm
Rear
120 mm
Clearance
Max GPU Length
415 mm
Max CPU Cooler Height
160 mm
Max PSU Length
(Include cable) 195 mm
Miscellaneous
Dust Filter
Top / Right side / Bottom
Net Weight
7.56 kg
Gross Weight
8.87 kg
Warranty
2 Years
Warranty:
2 Year Return To Base Warranty
|
COOLING
|
| Side fans diameters supported |
120 mm |
| Rear fans diameters supported |
120 mm |
| Top fans diameters supported |
120,140 mm |
| Rear radiator fan sizes supported |
120 mm |
| Top radiator fan sizes supported |
120,140,240,280,360 mm |
| Side radiator fan sizes supported |
120,140 mm |
DESIGN
|
| Type |
PC |
| Form factor |
Midi Tower |
| Material |
Glass, Plastic, Steel |
| Product colour |
Black |
| Supported motherboard form factors |
ATX, ITX, micro ATX |
| Anti-dust filter |
Yes |
| Number of 3.5" bays |
1 |
| Maximum CPU cooler height |
16 cm |
| Maximum graphics card length |
41.5 cm |
| Number of expansion slots |
7 |
| Maximum PSU length |
19.5 cm |
| Number of 2.5" bays |
3 |
PACKAGING DATA
|
| Package weight |
8.87 kg |
PORTS & INTERFACES
|
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
POWER SUPPLY
|
| Power supply included |
No |
STORAGE
|
| Supported HDD sizes |
2.5,3.5" |
WEIGHT & DIMENSIONS
|
| Weight |
7.56 kg |
| Height |
485 mm |
| Width |
210 mm |
| Depth |
470 mm |
