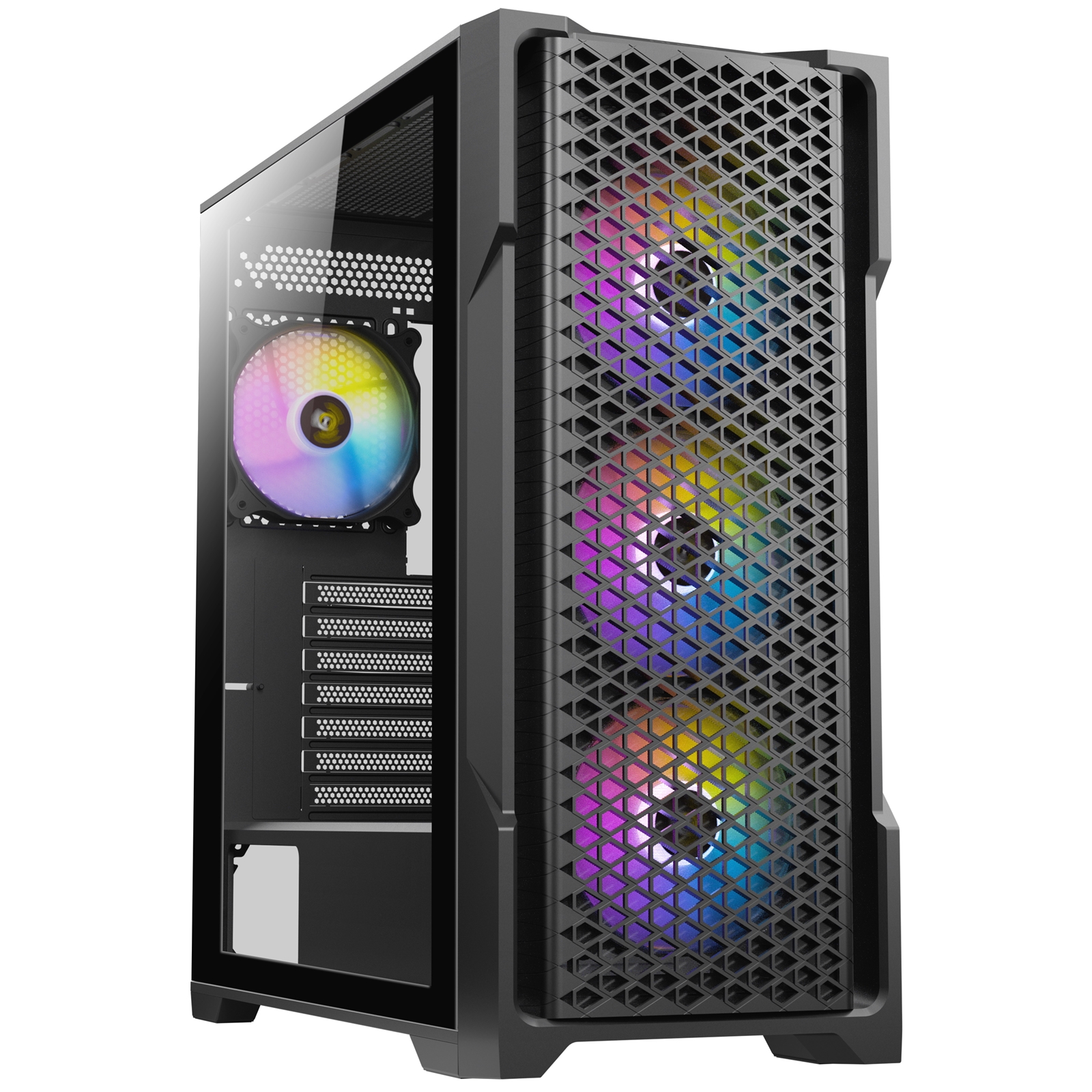

AX90
Mid-Tower Gaming Case

Unique Design & Powerful Heat Dissipation
The AX90 features a unique mesh front panel design and excellent cooling performance. The full-view tempered glass side panel design allows you to show off your gaming configurations without any obstacles. 11 x 120mm fans can be installed simultaneously.

Diamond-Shaped Mesh Front Panel
The diamond-shaped mesh front panel is ready to provide massive airflow for your system and the dust filtering function.

MAXIMUM COOLING POTENTIAL
The spacious interior can accommodate both front and upper radiators up to 360mm.

Powerful Cooling
Supporting 1 x 240mm radiator or 2 x 120mm fans side-mounted.

High-Airflow Mesh Front Panel
Enlarged mesh front panel provides massive airflow.

Pre-Installed 4 x 120mm Fans
Pull in massive air for cooling.
- Front: 3 x 120mm ARGB Fans
- Rear: 1 x 120mm ARGB Fans

In Sync with Motherboard for ARGB Lighting
The built-in control hub can sync with the motherboard or switch the ARGB lighting modes with the ARGB control button for your personalized setup.

Neat Build within Reach
23mm space for cable management ensures your PC build looks neat.

Tempered Glass Side Panel
Showcase your personalized hardware and custom water-cooling system.

Form Factor
Mid Tower

Materials
Steel
Plastic

Mainboard Support
ATX
Micro ATX
Mini-ITX

I/O Panel
Power
Reset
LED Control Button
2 x USB 2.0
1 x USB 3.0
MIC / HD-AUDIO

Side Panel
4mm Tempered glass

Drive Bays
3.5" / 2.5": 2 / 1
2.5": 2

Expansion
Slots: 7

Fan Support
Front: 3 x 120mm / 3 x 140mm
Top: 3 x 120mm / 2 x 140mm
Power Supply Shroud: 2 x 120mm
Side: 2 x 120mm
Rear: 1 x 120mm

Included Fans
Front: 3 x 120mm ARGB fans
Rear: 1 x 120mm ARGB fan

Radiator Support
Front: 120 / 140 / 240 / 280 / 360mm
Top: 120 / 140 / 240 / 280 / 360mm
Side: 120 / 240mm
Rear: 120mm

Clearance
Max GPU Length: = 385mm
Max CPU Cooler Height: = 160mm
Max PSU Length (Include cable) = 220mm (with HDD) / (Include cable) = 410mm (without HDD)

Dust Filters
Front
Top
Bottom
Right Hand Side

Dimensions ( D x W x H )
473 x 210 x 486mm

Weight
Net: 6.77 Kgs
Gross: 7.93 Kgs

Manufacturer's Website:

www.antec.com

Warranty:

1 Year Return To Base Warranty

COOLING
Front fans installed	3x 120 mm
Number of front fans supported (max)	3
Front fans diameters supported	120,140 mm
Side fans diameters supported	120 mm
Rear fans diameters supported	120 mm
Top fans diameters supported	120 mm
Number of side fans supported (max)	2
Number of rear fans supported (max)	1
Number of top fans supported (max)	3
Rear fans installed	1x 120 mm
Rear radiator fan sizes supported	120 mm
Front radiator fan sizes supported	120,140,240,280 mm
Top radiator fan sizes supported	120,140,240,280 mm
Side radiator fan sizes supported	120,240 mm
DESIGN
Type	PC
Form factor	Midi Tower
Material	Plastic, Steel
Product colour	Black
Reset button	Y
Supported motherboard form factors	ATX, ITX, micro ATX
Anti-dust filter	Y
Number of 3.5" bays	2
Maximum CPU cooler height	16 cm
Maximum graphics card length	38.5 cm
Number of expansion slots	7
Maximum PSU length	41 cm
Number of 2.5" bays	3
On/off button	Y
Tempered glass panel(s)	Y
PACKAGING DATA
Package weight	7.93 kg
LED controller	Y
PORTS & INTERFACES
USB 2.0 ports quantity	2
Combo headphone/mic port	Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
POWER SUPPLY
Power supply included	N
STORAGE
Supported HDD sizes	2.5,3.5"
WEIGHT & DIMENSIONS
Weight	6.77 kg
Height	486 mm
Width	210 mm
Depth	473 mm
