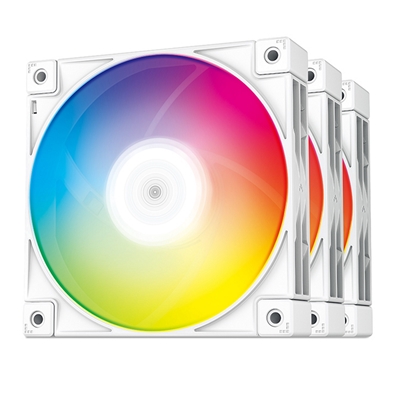

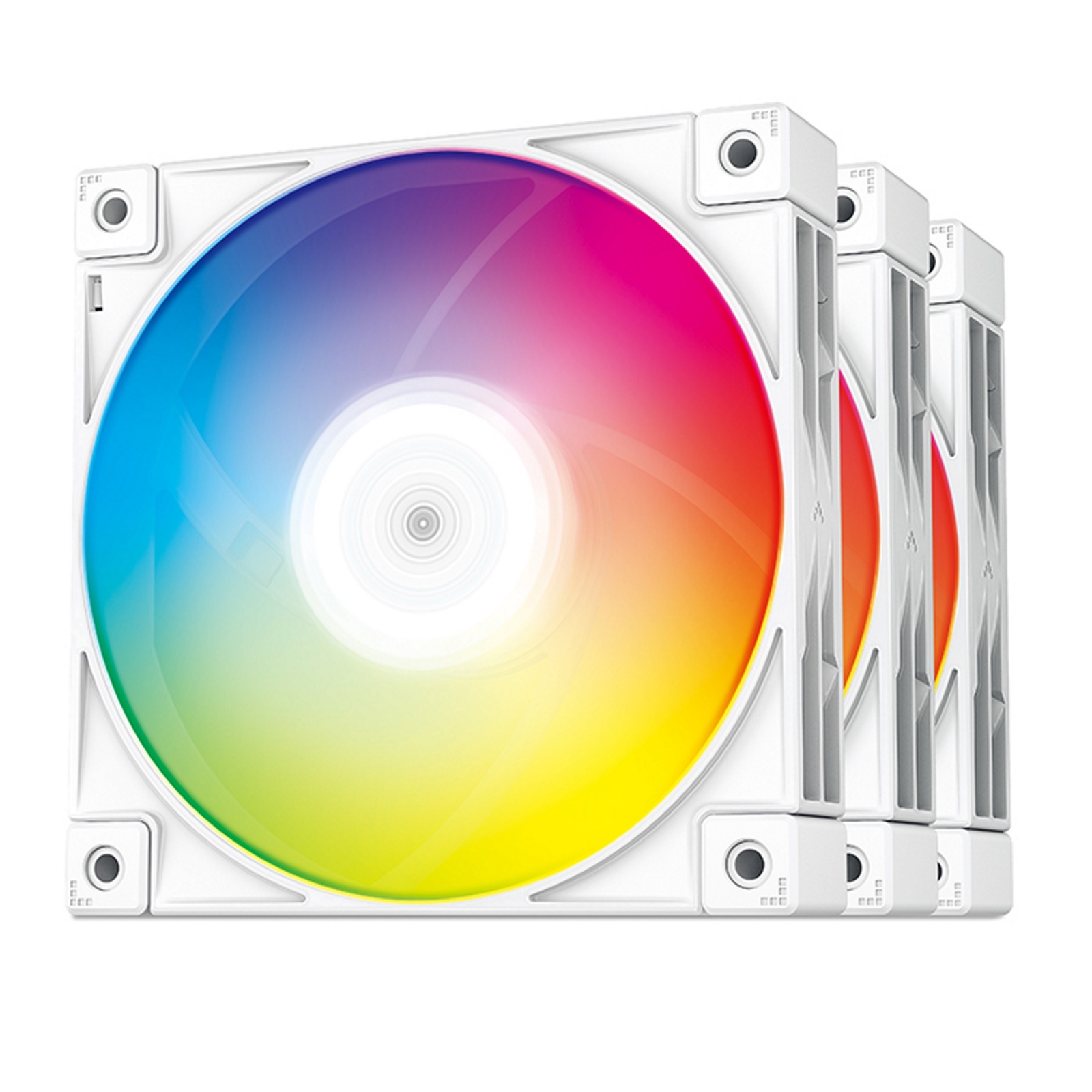

FC120 WHITE 3-IN-1
Colorful Cooling Simplified
The DeepCool FC120 performance RGB PWM fan simplifies cable management with a novel daisy-chainable cable that carries both RGB and power functions that interconnects between fans and reduces cable clutter.

PERFORMANCE RGB PWM FAN
The DeepCool FC120 performance RGB PWM fan simplifies cable management with a novel daisy-chainable cable that carries both RGB and power functions that interconnects between fans and reduces cable clutter.

RGB POWER INTERCONNECT
Each FC120 fan features a single cable that transmits both power and RGB data signals that can be daisy-chained in a series of fans to reduce cable clutter. The fan interconnect system removes the need for a hub and makes it easy to synchronize control of PWM and RGB for up to 4 fans.

LIGHTING LUMINOSITY
Individually addressable RGB LEDs surround the center hub and illuminate each translucent fan blade for a classic lighting effect with high luminosity. The FC120 also features a default onboard lighting effect without needing software or a dedicated controller for fast and easy setup. For full system RGB harmony, easily coordinate with other components through supported motherboard RGB software control.

Compatible with...
- Asus Aura Sync
- Razer Chroma RGB
- Gigabyte RGB Fusion
- MSI Mystic Light Sync
- ASRock Polychrome Sync
- AUTO-RGB

PERFORMANCE EXCELLENCE
Designed with precision, the FC120 features enhanced static pressure and concentrated airflow for outstanding cooling performance. The narrow frame bezel provides an increased area for the fan blades and delivers higher efficiency.
- 500~1800 RPM ± 10%: Fan Speed
- 61.91 CFM: Fan Airflow
- =28 dB(A): Fan Air Pressure

DETAILS MAKE THE DIFFERENCE
Built with high-quality polybutylene terephthalate (PBT) for increased durability and wear resistance, the fan blades maintain high tensile strength and stiffness to minimize unwanted vibrations.

Fan Dimension
120 x 120 x 25 mm

Fan Speed
500~1800 RPM ± 10%

Fan Air Flow
61.91 CFM

Fan Air Pressure
1.83 mmAq

Fan Noise Level
=28 dB(A)

Fan Connector
4-Pin PWM

Bearing Type
Hydro Bearing

Fan Rated Voltage
12VDC

Fan Rated Current
0.13A

Fan Power Consumption
1.56W

LED Type
Addressable RGB LED

LED Rated Voltage
5VDC

LED Rated Current
0.74A ± 10%

LED Connector
3-pin(+5V-D-G)

Net Weight
452g

Manufacturer's Website:

uk.deepcool.com

Warranty:

2 Year Return To Base Warranty

DESIGN
Material	Polybutylene terephthalate (PBT)
Product colour	Grey, White
Number of fans	3 fan(s)
Illumination colour	Multi
Fan connector	4-pin
Illumination LED	Yes
Number of fan blades	9
LED connector type	3-pin
ENERGY MANAGEMENT
Power consumption (typical)	1.56 W
Rated current	0.13 A
Fan voltage	12 V
Fan current	0.13 A
Rated voltage	12 V
Fan power consumption	1.56 W
LED voltage	5 V
LED power consumption (fan)	1.05 W
LOGISTICS DATA
Harmonized System (HS) code	84733080
OTHER FEATURES
Country of origin	China
Harmonized System (HS) code	84733080
PACKAGING CONTENT
Cables included	3-pin, 4-pin
Package type	Box
Mounting kit	Yes
Number of screws	12
Screws included	Yes
PERFORMANCE
Type	Fan
Compatible processor series	Not supported
Fan diameter	12 cm
Supported processor sockets	Not supported
Suitable location	Computer case
Maximum airflow	61.91 cfm
Maximum air pressure	1.83 mmH2O
Noise level (high speed)	28 dB
Rotational speed (max)	1800 RPM
Rotational speed (min)	500 RPM
Bearing type	Hydraulic
Quantity per pack	3 pc(s)
Pulse-width modulation (PWM) support	Yes
Fan bearing technology	Hydro bearing
WEIGHT & DIMENSIONS
Weight	452 g
Package weight	566 g
Height	120 mm
Width	120 mm
Depth	25 mm
Fan weight	452 g
Fan dimensions (W x D x H)	120 x 120 x 25 mm
