be quiet! Light Wings PWM Addressable RGB Fan Pack, 140mm, 1500RPM, 4-Pin PWM Fan & 3-Pin ARGB Connectors, Black Frame, Black Blades, ARGB Lighting on Front & Rear, Addressable RGB Hub Included

Key Specifications
Product TypeFan Kit
Fan Size140mm
Max Fan Speed1500RPM
Fan Shroud ColourBlack
LED ColourAddressable RGB
Connections4-Pin Fan & 3-Pin ARGB
/productImages/80/FABEQ-BL078.JPG
/productImages/80/181460.JPG
/productImages/80/181461.JPG
/productImages/80/181462.JPG
/productImages/80/181463.JPG
/productImages/80/181464.JPG
/productImages/80/181465.JPG
Manufacturer : BEQUIET
EAN : 4260052188828
Manufacturer Part Code : BL078
Weight : 1 kg
Login For Pricing

Key Specifications
Product TypeFan Kit
Fan Size140mm
Max Fan Speed1500RPM
Fan Shroud ColourBlack
LED ColourAddressable RGB
Connections4-Pin Fan & 3-Pin ARGB
Manufacturer :
BEQUIET

EAN :
4260052188828

Manufacturer Part Code :
BL078

Weight :
1 kg
Recommended Products
1284Power Supplies
See details
1283Case Lighting & Mods
See details
1337Internal Cables
See details

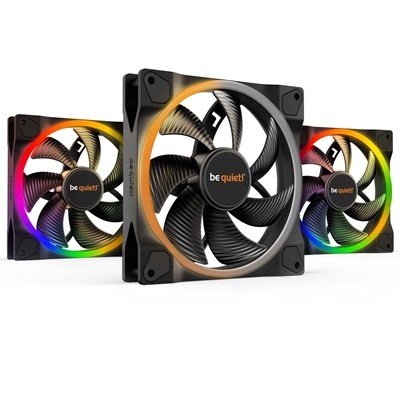

LIGHT WINGS - 140mm PWM Triple Pack
IMPRESSIVE LIGHTING, SUPERIOR COOLING
3 Light Wings 140mm PWM offer impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
- 3 fans included
- ARGB lighting on front and rear
- Multiple colors and modes for an individual look thanks to 20 LEDs
- ARGB Hub allows synchronization of up to 6 ARGB components
- 7 silence-optimized fan blades for high airflow and low noise-generating turbulences
- Very quiet operation with max. 23.3dB(A)
If you are looking for quiet case fans with an impressive look from every angle, these 3 Light Wings 140mm PWM are your fans of choice.

IMPRESSIVE LIGHTING
Lots of illumination possibilities
Light Wings 140mm PWM offers ARGB lighting at the front and rear. The subtly lit ring at the back combined with the bright one at the front make for a magnificent appearance from every angle. 20 ARGB LEDs give you many opportunities to individualize your PC build.

THREE FANS, ONE HUB
Synchronize up to 6 Light Wings simultaneously
An ARGB Hub allows to use and synchronize up to 6 ARGB components at the same time. A user-friendly installation makes for an easy and convenient process, while the elegant all-black design of the ARGB Hub visually suits any PC case. It can be mounted like an SSD or anywhere else using the double-coated adhesive tape supplied.

PERFECT CASE FAN
Fan blades optimized for high airflow
With optimization for maximum airflow, Light Wings 140mm PWM is the right choice for any case configuration that demands high cooling performance. Its 7 airflow-optimized fan blades not only reduce noise-generating turbulences, but also ensure Light Wings 140mm PWM provides the performance that is needed, even in demanding configurations.

VERY QUIET OPERATION
Acclaimed be quiet! low noise level
A highly optimized fan frame and impeller achieve the silent operation be quiet! is famous for. With a noise level of just 23.3dB(A) at maximum fan speed, it proves that instead of being a replacement the lighting is an addon to very silent and very powerful operation. All features combine to make Light Wings 140mm PWM the fan of choice for silent show cases and gaming systems alike.

VARIABLE FAN SPEED FUNCTION
Adjusts the fan speed and associated noise level
Pulse Width Modulation (PWM) allows compatible 4-pin controllers, including those built into many motherboards, to intelligently vary the speed and thus the noise level of the fan. With PWM the system can ramp up the cooling when it's needed, or operate in maximum quiet mode when it's not.

General Data
Model: Light Wings 140mm PWM Triple Pack
Dimensions (mm): 140
Color option: Black
Lighting: ARGB LED
Fan speed @ 100% PWM / 12V (rpm): 1500
Noise level @ 100% PWM / 12V (dB(A)): 23.3
Air Flow @ 100% PWM / 12V (CFM / m3/h): 56 / 95.14
Air Pressure @ 100% PWM / 12V (mm H2O): 1.49

Mechanical Specifications
Dimensions (L x W x H), (mm): 140 x 140 x 25
Weight incl. fixed cables (g): 241
Bearing technology: Rifle
Motor technology: 4-pole fan motor
Push pin fixing: -
Screw fixing: Yes

Cables / Connectors
Daisy chain for lighting signal: Yes
Lighting connector: 5V 3-pin ARGB
Connector: 4-pin PWM
Cable length (mm): 500
Cable sleeve: -

Performance / Noise
Air Flow @ 100% PWM / 12V (CFM / m3/h): 56 / 95.14
Air Pressure @ 100% PWM / 12V (mm H2O): 1.49
Noise level @ 100% PWM / 12V (dB(A)): 23.3
Lifespan (h / 25°C): 60,000

Electrical Specifications
Rated Voltage DC (V): 12
Operating Voltage DC (V): 5 - 13.2
Current consumption (A): 0.08
Safety current (A): 0.32
Input power (W): 3.84
Rated Current LED (A): 0.67

Accessories
3-pin to 4-pin 12V-connector: -
12V to 7V adapter: -
12V to 5V adapter: -
Screws: 16
Push pins: -
hard plastic washer: -
Others: ARGB Hub

Safety Certification
Approvals: CE / RoHs / RU / WEEE

Environmental Directives
RoHs: -
Triman: -

Logistics Data
Article number: BL078
Dimensions, package (L x W x H), (mm): 192 x 133 x 86.5
Gross weight, package (kg): 1.002
Manufacturer's Website:
Warranty:
3 Year Return To Base Warranty
DESIGN
Product colour Black
Illumination colour Multi
Fan connector 4-pin
Illumination LED Y
ENERGY MANAGEMENT
Power consumption (typical) 3.84 W
Rated current 0.67 A
Voltage 5 - 13.2 V
Rated voltage 12 V
Safety current 0.32 Ah
LOGISTICS DATA
Shipping (inner) case width 32.3 cm
Shipping (inner) case length 45.4 cm
Shipping (inner) case height 22 cm
Shipping (inner) case gross weight 10.8 kg
Products per shipping (inner) case 10 pc(s)
Harmonized System (HS) code 84733080
OTHER FEATURES
Country of origin China
Harmonized System (HS) code 84733080
PACKAGING CONTENT
Number of screws 16
Screws included Y
PERFORMANCE
Type Fan
Mean time between failures (MTBF) 60000 h
Compatible processor series Not supported
Airflow 95.14 m³/h
Fan diameter 14 cm
Supported processor sockets Not supported
Suitable location Computer case
Maximum airflow 56 cfm
Maximum air pressure 1.49 mmH2O
Noise level (high speed) 23.3 dB
Rotational speed (max) 1500 RPM
Bearing type Rifle bearing
Quantity per pack 1 pc(s)
Pulse-width modulation (PWM) support Y
TECHNICAL DETAILS
Sustainability compliance Y
Sustainability certificates CE, RoHS, WEEE
WEIGHT & DIMENSIONS
Weight 200 g
Package weight 1 kg
Cable length 0.5 m
Package depth 192 mm
Package height 86.5 mm
Package width 133 mm
Fan weight 241 g
Fan dimensions (W x D x H) 140 x 140 x 25 mm
