Target Components

OUTSTANDING PRICE-PERFORMANCE RATIO
The Pure Wings 2 80mm fans bring famous be quiet! silent cooling to entry level computing, yet are also appropriate for gaming and multimedia systems. The most important features include:

7 airflow-optimized fan blades that reduce noise-generating turbulence
Long life rifle-bearing gives an operating lifetime of 80,000 hours
Even at maximum speed, operates at only 18.2dB(A)
Product conception, design and quality control in Germany
3-year warranty
Pure Wings 2 80mm fans offer outstanding reliability and quiet operation at great price-for-performance ratio. They are the ultimate reason to put the well-known be quiet! silent cooling in your PC.

General data

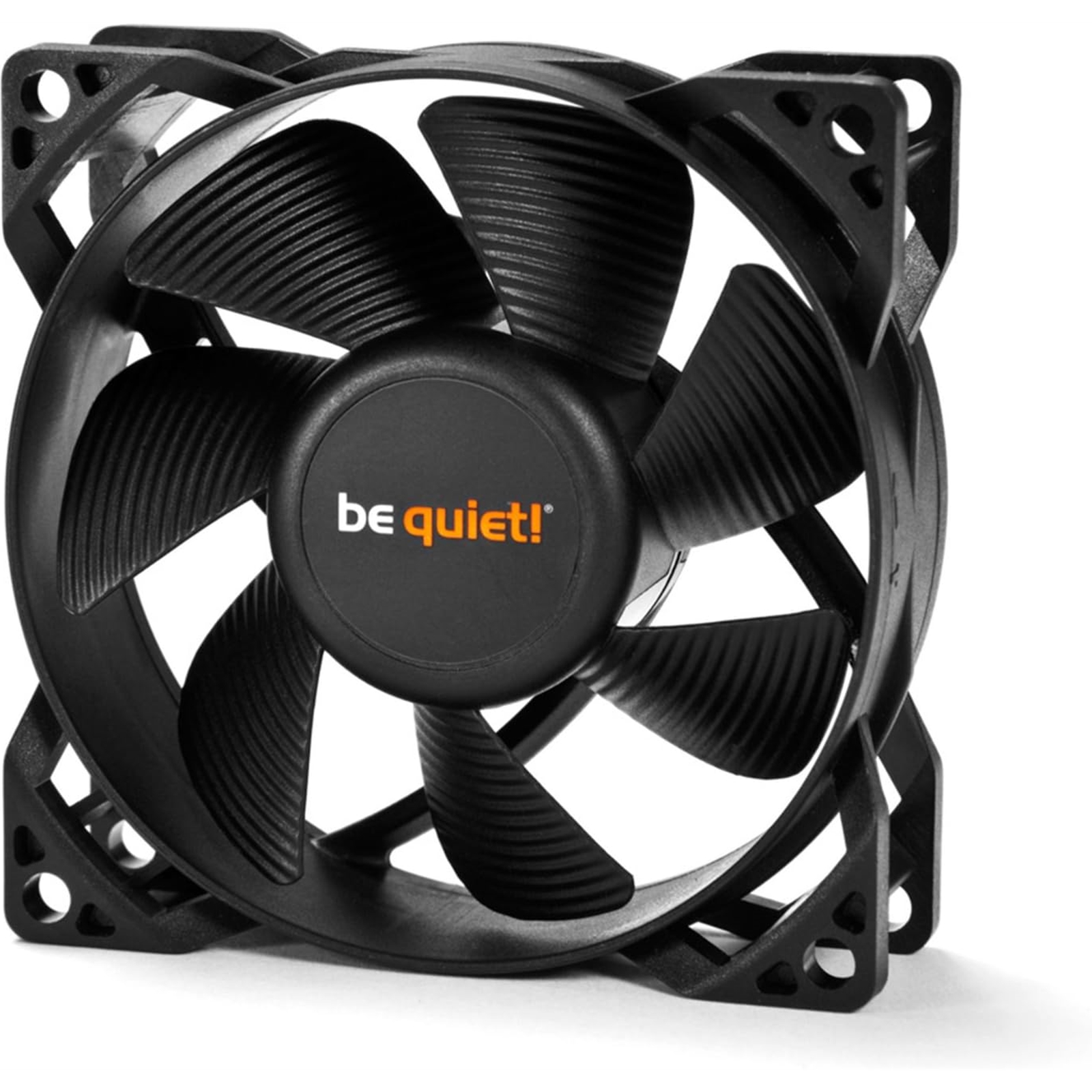

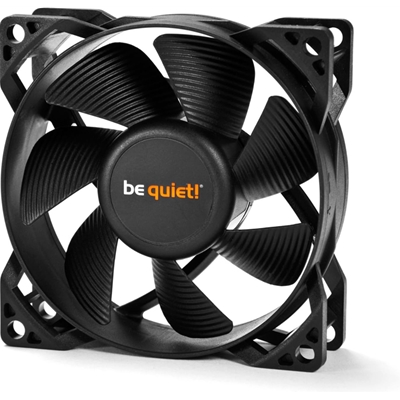

Model Pure Wings 2 80mm
Dimensions (mm) 80
Color option Black
Lighting -
Fan speed @ 100% PWM / 12V (rpm) 1900
Noise level @ 100% PWM / 12V (dB(A)) 18.2
Air Flow @ 100% PWM / 12V (CFM / m3/h) 26.3 / 44.45
Air Pressure @ 100% PWM / 12V (mm H2O) 1.85

Mechanical specifications
Dimensions (L x W x H), (mm) 80 x 80 x 25
Weight incl. fixed cables (g) 72
Bearing technology Rifle
Motor technology 4-pole fan motor
Push pin fixing -
Screw fixing -

Cables / Connectors
Daisy-chain compatible -
Lighting connector -
Connector 3-pin
Cable length (mm) 460
Cable sleeve -

Performance / Noise
Air Flow @ 100% PWM / 12V (CFM / m3/h) 26.3 / 44.45
Air Pressure @ 100% PWM / 12V (mm H2O) 1.85
Noise level @ 100% PWM / 12V (dB(A)) 18.2
Lifespan (h / 25°C) 80,000

Electrical specifications
Rated Voltage DC (V) 12
Operating Voltage DC (V) 5 - 12
Current consumption (A) 0.12
Safety current (A) 0.14
Input power (W) 1.68
Rated Current LED (A) -

Accessories
3-pin to 4-pin 12V-connector -
12V to 7V adapter -
12V to 5V adapter -
Screws 4
Push pins -
hard plastic washer -
Others -

Safety certification
Approvals CE / TUV / UL

Environmental directives
RoHS -
WEEE ?
Triman -

Logistics data
Article number BL044
Dimensions, package (L x W x H), (mm) 115 x 82 x 27
Gross weight, package (kg) 0.088
