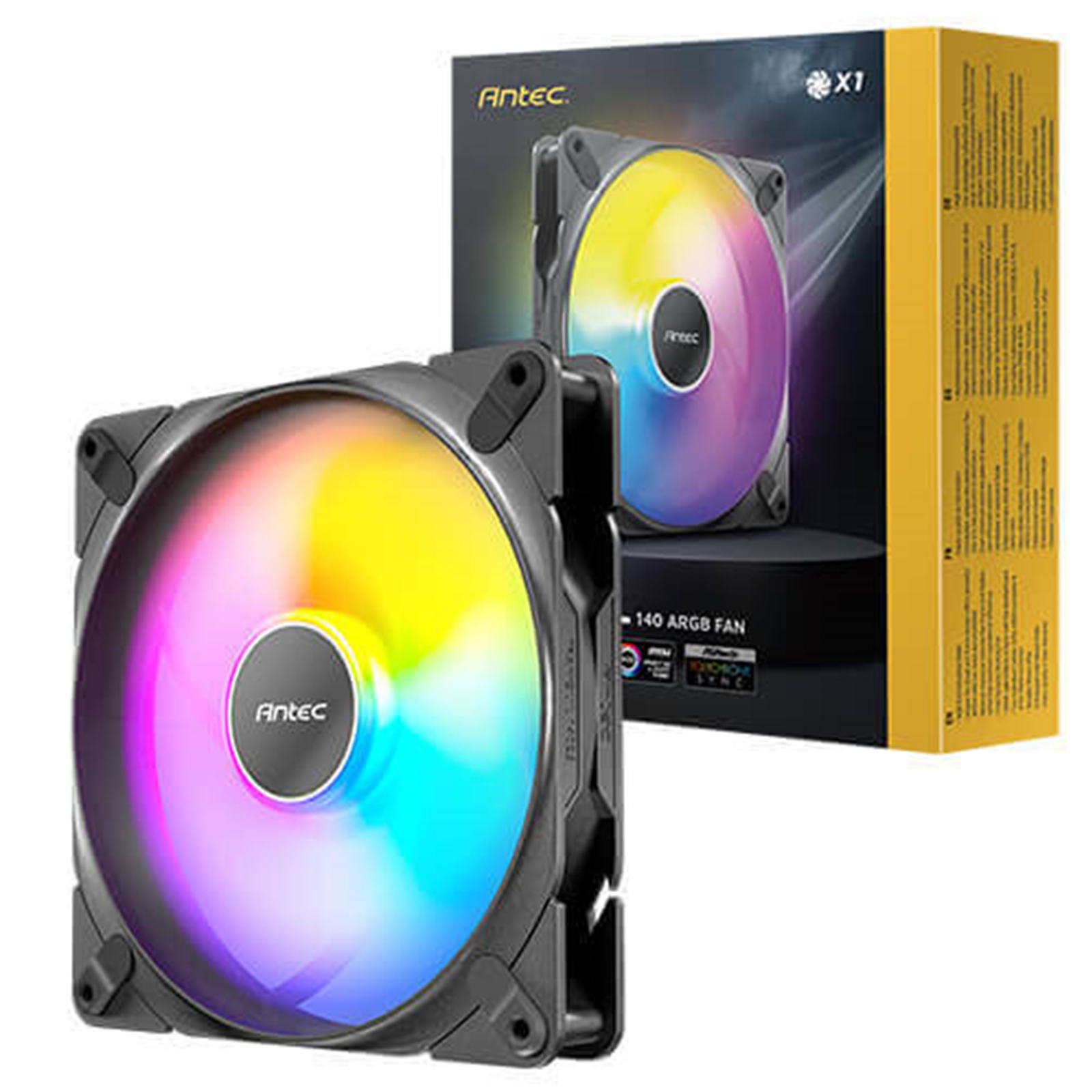

Antec Tranquil 140 ARGB PWM Case Fan - Fluid Dynamic Bearing, 450-1500 RPM, Black

FAANT-TQ140ARGB
Key Specifications
Product TypeCase Fan
Fan Size140mm
Max Fan Speed1500RPM
Fan Shroud ColourBlack
LED ColourAddressable RGB
Connections4-Pin Fan & 3-Pin ARGB
/productImages/80/FAANT-TQ140ARGB.JPG
/productImages/80/206732.JPG
/productImages/80/206733.JPG
/productImages/80/206734.JPG
/productImages/80/206735.JPG
/productImages/80/206736.JPG
/productImages/80/206737.JPG
Manufacturer : ANTEC
EAN : 0761345400367
Manufacturer Part Code : 0-761345-40036-7
Weight : 0.25 kg
Login For Pricing

Key Specifications
Product TypeCase Fan
Fan Size140mm
Max Fan Speed1500RPM
Fan Shroud ColourBlack
LED ColourAddressable RGB
Connections4-Pin Fan & 3-Pin ARGB
Manufacturer :
ANTEC

EAN :
0761345400367

Manufacturer Part Code :
0-761345-40036-7

Weight :
0.25 kg
Recommended Products
1281Cases
See details
1284Power Supplies
See details
1283Case Lighting & Mods
See details
1337Internal Cables
See details

Tranquil 140 ARGB PWM FAN

TRANQUIL & POWERFUL
Unique fan blade and frame design offers powerful airflow with low noise accomplished.

EXQUISITE CRAFTSMANSHIP
Minimal clearance between fan frame and blades, achieving maximum operational efficiency.

FLUID DYNAMIC BEARING
Reduces friction between shaft and bearing for longer life and minimal noise.

VIBRATION-ABSORBING & ANTI-NOISE PADS
Equipped with eight damping feet to prevent resonance, reducing noise effectively.

Specifications

Model Name
Tranquil 140 ARGB

Fan Type
ARGB Fan

Dimensions
140 x 140 x 25 mm

Bearing Type
FDB

LED Type
Addressable RGB

Fan Speed
450±100~1500±150 RPM

Airflow
22.18~89.72 CFM

Air Pressure
0.14~1.82 mmH2O

Fan Noise Level
18.6~27.5 dB(A)

Lifespan
50,000 hours / 25?

Connector
FAN: 4-pin PWM | LED: 3-pin

Rated Voltage
FAN: DC 12 V | LED: DC 5 V

Operation Voltage
DC 7-13.8 V

Rated Current
FAN: 0.12 (MAX:0.18) A | LED: 0.30A(MAX)

Warranty
2 Years
Manufacturer's Website:
www.antec.com
Warranty:
2 Year Return To Base Warranty
DESIGN
Product colour Black, Grey
Illumination colour Multi
Fan connector 4-pin
Illumination LED Yes
LED connector type 3-pin
ENERGY MANAGEMENT
Rated current 0.12 A
Maximum current 0.18 A
Voltage 7 - 13.8 V
Rated voltage 12 V
LED voltage 5 V
PACKAGING CONTENT
Package type Box
PERFORMANCE
Type Fan
Fan diameter 14 cm
Suitable location Computer case
Maximum airflow 89.72 cfm
Minimum airflow (imperial) 22.18 cfm
Minimum air pressure 0.14 mmH2O
Maximum air pressure 1.82 mmH2O
Fan speed (max) 1500 RPM
Fan speed (min) 450 RPM
Bearing type Fluid Dynamic Bearing (FDB)
Quantity per pack 1 pc(s)
Fan noise level (min) 18.6 dB
Fan noise level (max) 27.5 dB
Fan's mean time to failure (MTTF) 50000 h
WEIGHT & DIMENSIONS
Height 140 mm
Width 140 mm
Depth 25 mm
