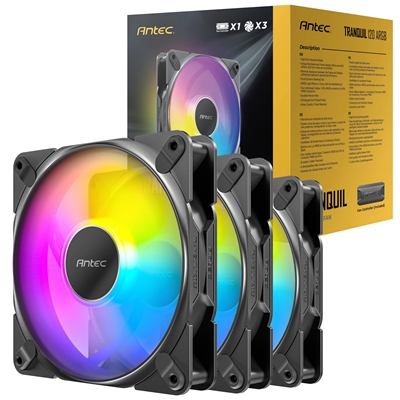

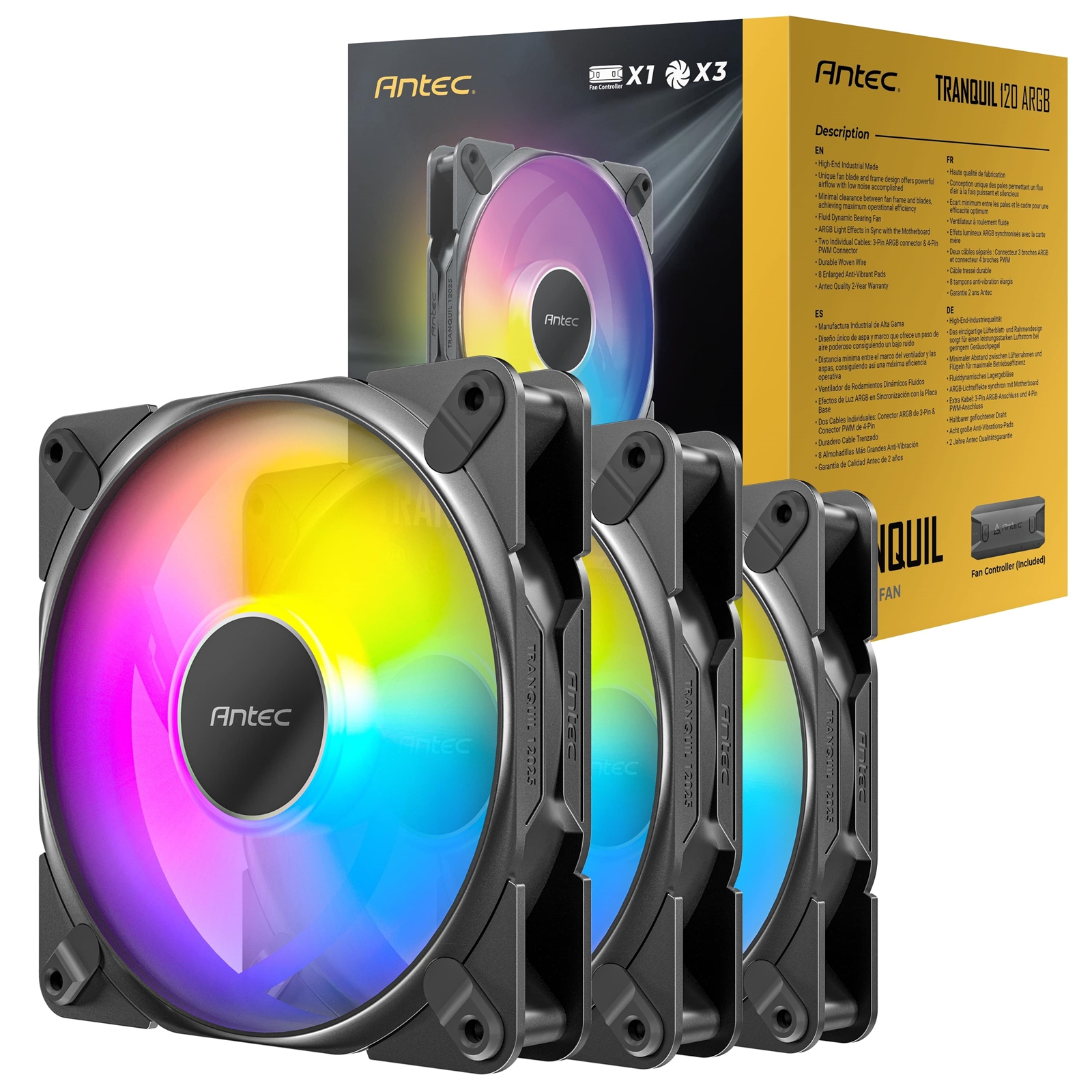

Antec Tranquil 120 ARGB 3-Pack Case Fans with Controller - 120mm High Performance PWM Fans with Addressable RGB Lighting and Fan Control Hub

FAANT-TQ120ARGB3
Key Specifications
Product TypeCase Fan
Fan Size120mm
Max Fan Speed2000RPM
Fan Shroud ColourBlack
LED ColourAddressable RGB
Connections4-Pin Fan & 3-Pin ARGB
/productImages/80/FAANT-TQ120ARGB3.JPG
/productImages/80/200099.JPG
/productImages/80/200100.JPG
/productImages/80/200101.JPG
/productImages/80/200102.JPG
/productImages/80/200103.JPG
/productImages/80/200104.JPG
/productImages/80/200105.JPG
/productImages/80/200106.JPG
/productImages/80/200107.JPG
Manufacturer : ANTEC
EAN : 0761345400329
Manufacturer Part Code : 0-761345-40032-9
Weight : 0.7 kg
Login For Pricing

Key Specifications
Product TypeCase Fan
Fan Size120mm
Max Fan Speed2000RPM
Fan Shroud ColourBlack
LED ColourAddressable RGB
Connections4-Pin Fan & 3-Pin ARGB
Manufacturer :
ANTEC

EAN :
0761345400329

Manufacturer Part Code :
0-761345-40032-9

Weight :
0.7 kg
Recommended Products
1281Cases
See details
1284Power Supplies
See details
1283Case Lighting & Mods
See details
1337Internal Cables
See details

Antec Tranquil 120 ARGB PWM Fan - 3 PACK

TRANQUIL & POWERFUL
Unique fan blade and frame design offers powerful airflow with low noise accomplished.

EXQUISITE CRAFTSMANSHIP
Minimal clearance between fan frame and blades, achieving maximum operational efficiency.

FLUID DYNAMIC BEARING
Reduces friction between shaft and bearing for longer life and minimal noise.

VIBRATION-ABSORBING & ANTI-NOISE PADS
Equipped with eight damping feet to prevent resonance, reducing noise effectively.

EMINENT COOLING PERFORMANCE
Airflow - 64.02 CFM
Air Pressure - 2.45 mmH^2O
noise Level - 26.9 dB(A)

ARGB & PWM FAN CONTROLLER INSTALLATION
ARGB PWM Case Fan
4-Pin 12V PWM cable
3 - Pin 5V ARGB Cable

ARGB Sync/PWM
Signal Cable

3- Pin ARGB Header
Motherboard

4-Pin PWM Header
Motherboard

Power Supply
SATA Power Cable
LED Button Cable

CABLE & CONNECTOR
Durable Woven Wire
Covered with durable woven wire to enhance the lifetime & create unique aesthetics

3-Pin 5V ARGB Cable
Cable length 500 mm

4-Pin 12V PWM Cable
Cable length 500 mm

Specifications

Fan Type
ARGB PWM Fan
3 PACK

Dimensions
120 x 120 x 25 mm

Bearing Type
FDB Bearing

LED Type
Addressable RGB

Fan Speed
400+100-2000+150 RPM

Airflow
64.02 CFM

Air Pressure
2.45 mmH2O

Fan Noise Level
26.9 dB(A)

Lifespan
50,000/ hrs 25 degree C

Connector
Fan 4-pin (PWM) / LED 3-Pin

Rated Voltage
Fan SC 12 V / LED DC 5 V

Operation Voltage
Fan DC 7.0 - 13.8 V / LED DC 4.0 - 5.5V

Rated Current
Fan < 0.20 A / LED < 0.30 A

Warranty
2 Years
Manufacturer's Website:
www.antec.com
Warranty:
2 Year Return To Base Warranty
DESIGN
Product colour Black
Illumination colour Multi
Fan connector 4-pin
Illumination LED Yes
LED connector type 3-pin
ENERGY MANAGEMENT
Rated current 0.15 A
Maximum current 0.2 A
Voltage 7 - 13.8 V
Rated voltage 12 V
LED voltage 5 V
PERFORMANCE
Type Fan
Fan diameter 12 cm
Suitable location Computer case
Maximum airflow 64.02 cfm
Minimum airflow (imperial) 9.33 cfm
Minimum air pressure 0.09 mmH2O
Maximum air pressure 2.45 mmH2O
Fan speed (max) 2000 RPM
Fan speed (min) 400 RPM
Bearing type Fluid Dynamic Bearing (FDB)
Quantity per pack 3 pc(s)
Fan noise level (min) 18.8 dB
Fan noise level (max) 26.9 dB
Fan's mean time to failure (MTTF) 50000 h
WEIGHT & DIMENSIONS
Height 120 mm
Width 120 mm
Depth 25 mm
