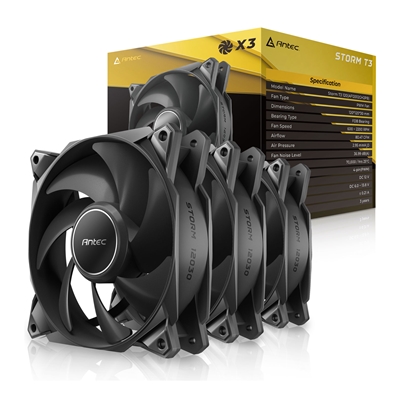

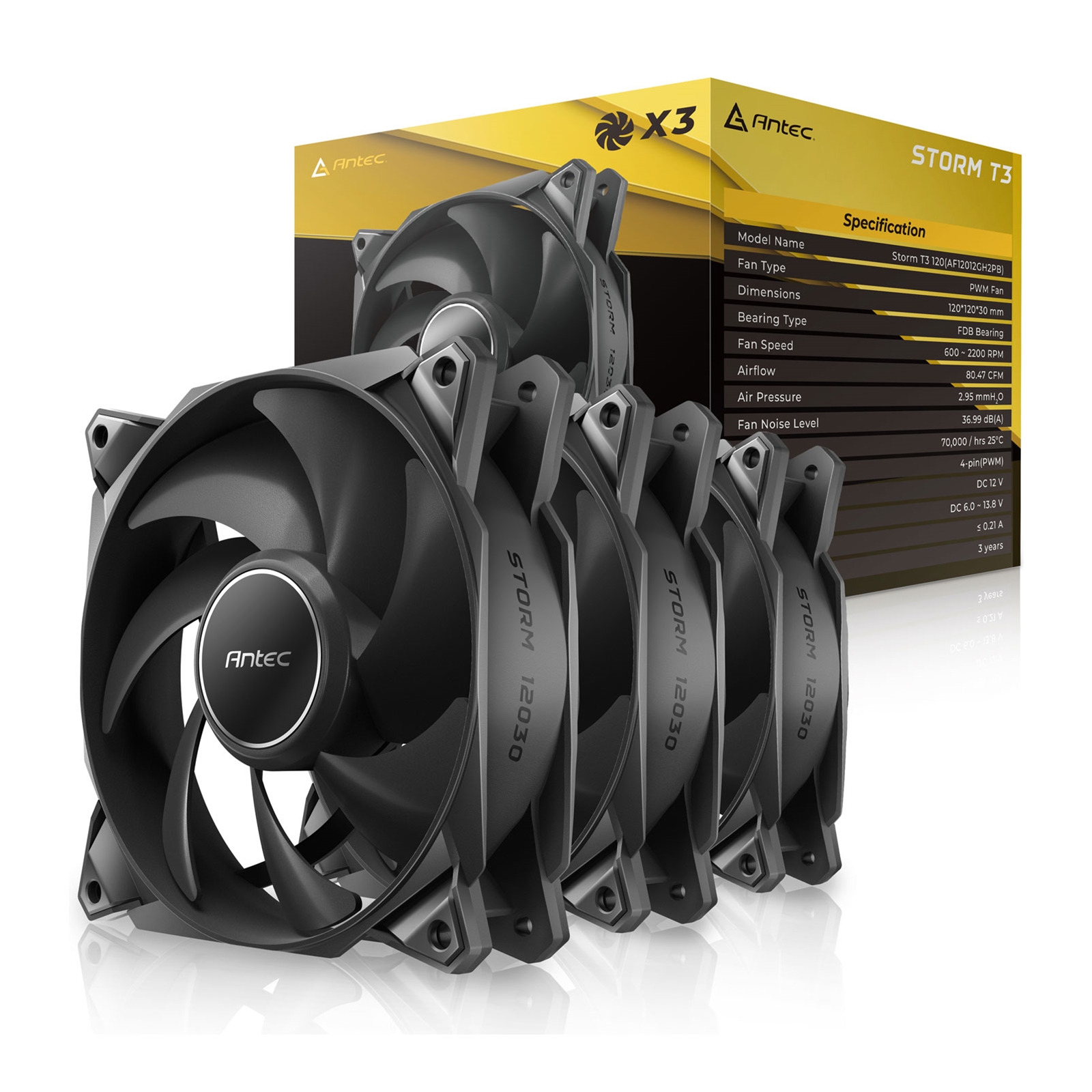

STORM T3 120 PWM Case Fan 3PK
Storm T3 with a Thickness of 30 mm and Thickened Fan Blades
Increased 25% thicker Fan Blade width for high air pressure and airflow performance, so as to minimize the resonance.
Increased the thickness by 30mm makes the contact surface wider and bigger air inlet area between the fan and the chassis, max 80.47 CFM
Air-Concentrating Design
The well-designed case frame and curves make the airflow stronger, reduce turbulent flow and fan noise and enhance the efficiency.
PWM Daisy-Chain Design
To avoid signal interference, fans are daisy-chained with 3-pin connectors. But the fans fully support the PWM function.
Fluid Dynamic Bearing Fan
The FDB bearing fan can extend durability and lifespan.
Vibration-Absorbing & Anti-Noise Pads
The 8 x 6mm rubber pads can efficiently reduce vibration and noise.
Specifications
Model Name
Storm T3 120 (AF12012GH2PB)
Fan Type
PWM Fan
Dimensions
120 x 120 x 30 mm
Bearing Type
FDB Bearing
Fan Speed
600~2200RPM ± 10%
Airflow
min 18.17~max 80.47 CFM
Air Pressure
min 0.25~max 2.95 mmH2O
Fan Noise Level
36.99 dB(A)
Lifespan
70,000 hrs 25°C
Connector
4-pin PWM
Rated Voltage
DC 12 V
Operation Voltage
DC 6.0-13.8 V
Rated Current
= 0.21A
Warranty
3 Years
Warranty:
3 Year Return To Base Warranty
There are currently no data sheets available for this product.
