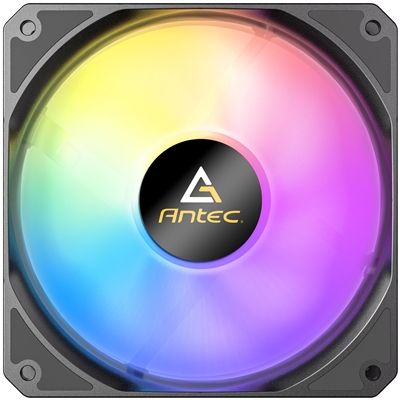

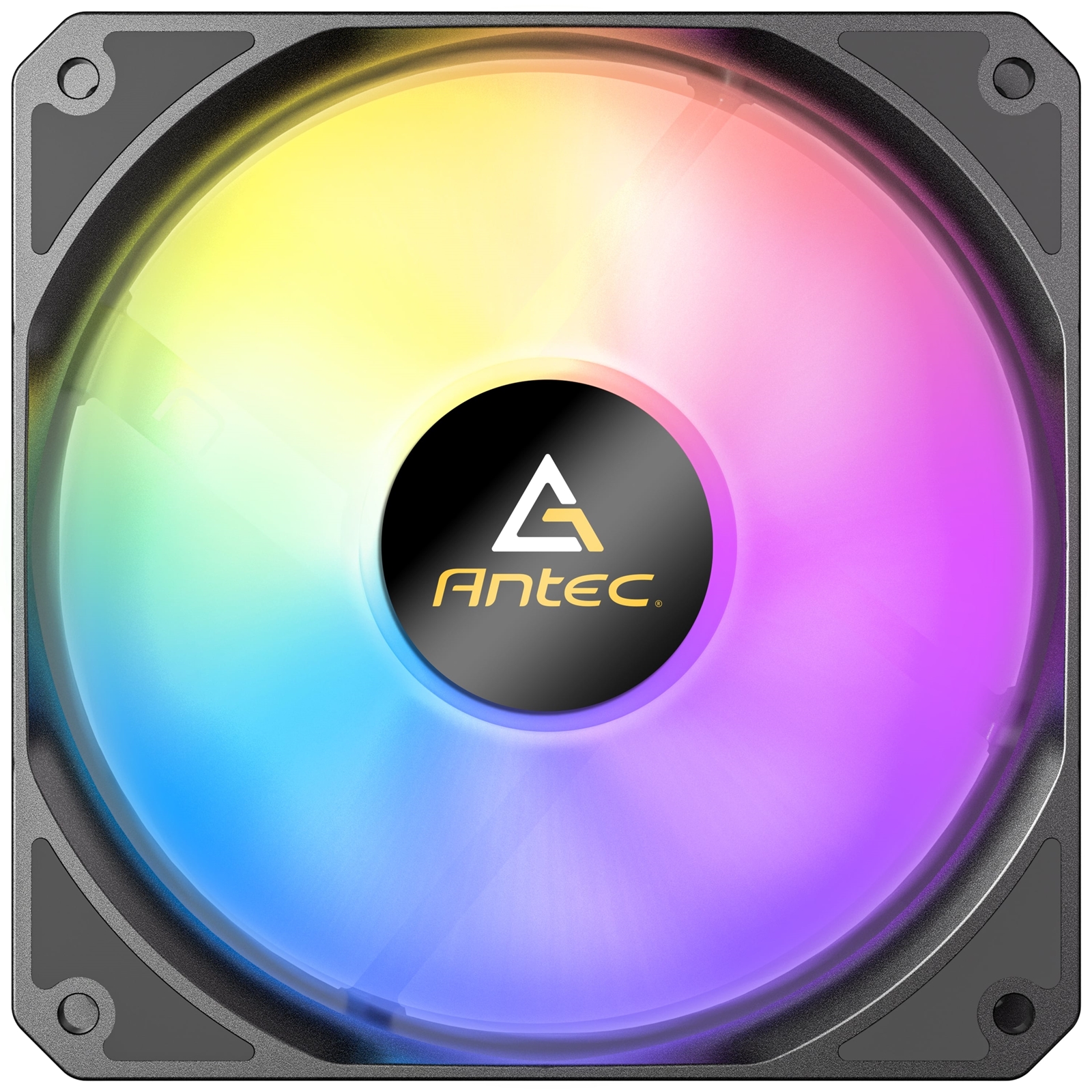

Antec P12R ARGB Reverse PWM 120mm Fan - 4-Pin, Black, High-Airflow Cooling, 9-Blade Design with Anti-Vibration Pads

FAANT-P12R
Key Specifications
Product TypeCase Fan
Fan Size120mm
Max Fan Speed1500RPM
Fan Shroud ColourBlack
LED ColourAddressable RGB
Connections4-Pin Fan & 3-Pin ARGB
/productImages/80/FAANT-P12R.jpg
/productImages/80/204378.JPG
/productImages/80/204379.JPG
/productImages/80/204380.JPG
/productImages/80/204381.JPG
/productImages/80/204382.JPG
/productImages/80/204383.JPG
Manufacturer : ANTEC
EAN : 0761345400343
Manufacturer Part Code : 0-761345-40034-3
Weight : 0.15 kg
Login For Pricing

Key Specifications
Product TypeCase Fan
Fan Size120mm
Max Fan Speed1500RPM
Fan Shroud ColourBlack
LED ColourAddressable RGB
Connections4-Pin Fan & 3-Pin ARGB
Manufacturer :
ANTEC

EAN :
0761345400343

Manufacturer Part Code :
0-761345-40034-3

Weight :
0.15 kg
Recommended Products
1281Cases
See details
1284Power Supplies
See details
1283Case Lighting & Mods
See details
1337Internal Cables
See details

Reverse fan
Reverse fan blade design provides smoother air intake in a cleaner look.

Superior Heat Dissipation
9-blade design provides efficient ventilation and powerful airflow, ensuring the fan maintains extremely efficient cooling level even as air resistance increases.

Bright ARGB
Full-spectrum ARGB lighting delivers distinctive visions to meet every need of gamers.

PWM Fan
From low noise to high performance, tune your perfect fan curve between 240 - 1350 RPM.

Quiet operation
8 anti-vibration rubber pads and hydro bearing help the fan run quietly.

SPECIFICATIONS

Model Name
P12R ARGB

Fan Type
ARGB PWM Fan

Dimensions
120 x 120 x 25 mm

Bearing Type
Hydraulic Bearing

Fan Speed
600±100~1500±150 RPM

Airflow
55.31~61.46 CFM (max.)

Air Pressure
0.87~1.07 mmH2O (max.)

Fan Noise Level
14.2~29.5 dB(A)

Lifespan
30,000 hours / 40 | 40,000 hours / 25
Connector
FAN: 4-pin | LED: 3-pin

Rated Voltage
FAN: DC 12 V | LED: DC 5 V

Operation Voltage
FAN: DC 7.0-13.8 V

Rated Current
FAN: 0.15 A (0.22A (max.)) | LED: 0.3 A

Warranty
1 Year
Manufacturer's Website:
www.antec.com
Warranty:
1 Year Return To Base Warranty
DESIGN
Product colour Black
Illumination colour Multi
Fan connector 4-pin
Illumination LED Yes
Number of fan blades 9
LED connector type 3-pin
ENERGY MANAGEMENT
Rated current 0.15 A
Voltage 7 - 13.8 V
Rated voltage 12 V
LED voltage 5 V
PACKAGING CONTENT
Package type Box
PERFORMANCE
Type Fan
Fan diameter 12 cm
Suitable location Computer case
Maximum airflow 61.46 cfm
Minimum airflow (imperial) 55.31 cfm
Minimum air pressure 0.87 mmH2O
Maximum air pressure 1.07 mmH2O
Fan speed (max) 1500 RPM
Fan speed (min) 600 RPM
Bearing type Hydraulic
Quantity per pack 1 pc(s)
Fan noise level (min) 14.2 dB
Fan noise level (max) 29.5 dB
Fan's mean time to failure (MTTF) 30000 h
WEIGHT & DIMENSIONS
Height 120 mm
Width 120 mm
Depth 25 mm
