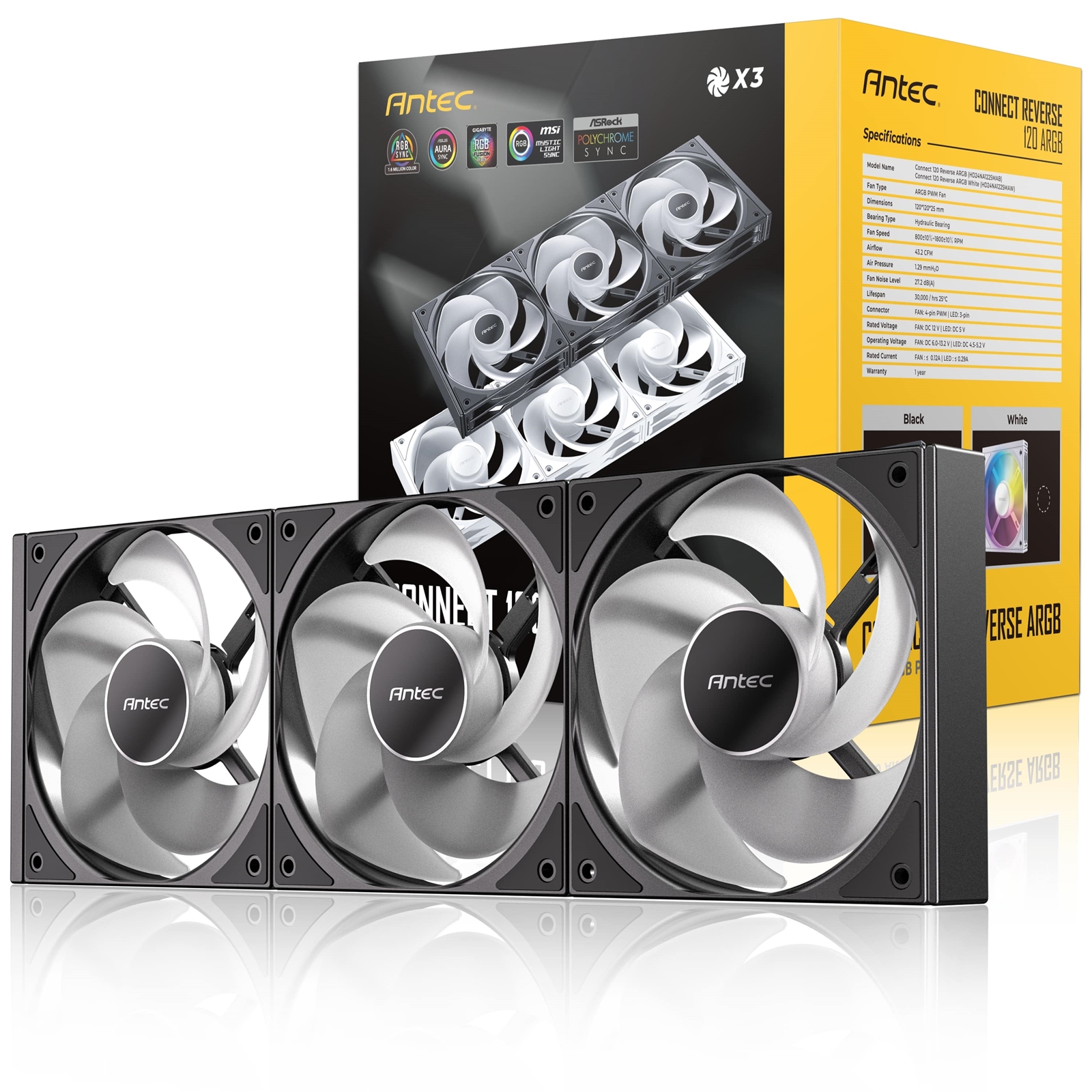

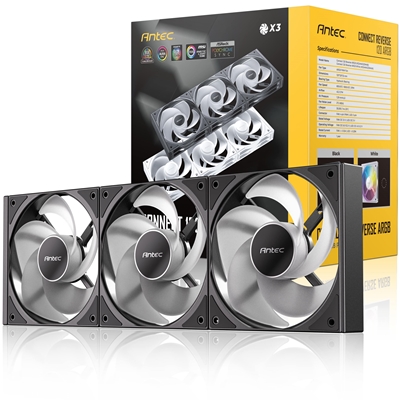

Connect 120 Reverse ARGB
Intuitive Interlocking System
Connect the fans internally with each other to streamline the installation process.
3 Fans 4 Screws
Interlocking system helps you mount multiple fans using less screws.
Easier Installation With Less Cables
Daisy Chain design with less cables needed.
PWM ARGB Fan
Strong and stable airflow in quiet operation.
ENLARGED VIBRATION-ABSORBING & ANTI-NOISE PADS
8 anti-vibration pads effectively reduce vibration and noise.
Fan Installation
Pay attention to the cable outlet when installing fan covers; the outlet should be positioned over the male connector.
ARGB LIGHTING EFFECT SYNC
Extendable 3-Pin Daisy-Chain ARGB connector provides a much easier way to integrate lighting effect with motherboard and other components.
Reverse Fan
Reverse fan blade design provides smoother air intake in a cleaner look.
Specification
Model Name
C120R ARGB 3PK
Fan Type
ARGB PWM Fan
Dimensions
120 x 120 x 25 mm
Bearing Type
Hydraulic Bearing
Fan Speed
800RPM± 10% - 1800RPM± 10%
Airflow
43.2 CFM
Air Pressure
1.29 mmH2O
Fan Noise Level
27.2 dB(A)
Lifespan
30,000 hours / 25?
Connector
FAN: 4-pin PWM
LED: 3-pin
Rated Voltage
FAN: DC 12 V
LED: DC 5 V
Operation Voltage
FAN: DC 6.0-13.2 V
LED: DC 4.5-5.2 V
Rated Current
FAN : = 0.12A±10%
LED : = 0.29A±10%
Warranty
1 Year
Warranty:
1 Year Return To Base Warranty
There are currently no data sheets available for this product.
