Turn a 2.5" SATA HDD/SSD into a 3.5" SATA Drive
- Supports 2.5" SSD/HDD up to 12.5mm in height
- Standard 3.5" HDD mounting points
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Tool-less installation
Applications
- Replace your 3.5" hard drives with same-size SSDs
- Install a 2.5" SATA HDD/SSD into any 3.5" hard drive bay, such as a desktop chassis, backplane kit, or docking station
- Repurpose unused laptop hard drives to work with your desktop computer, or as a hot-swap storage solution

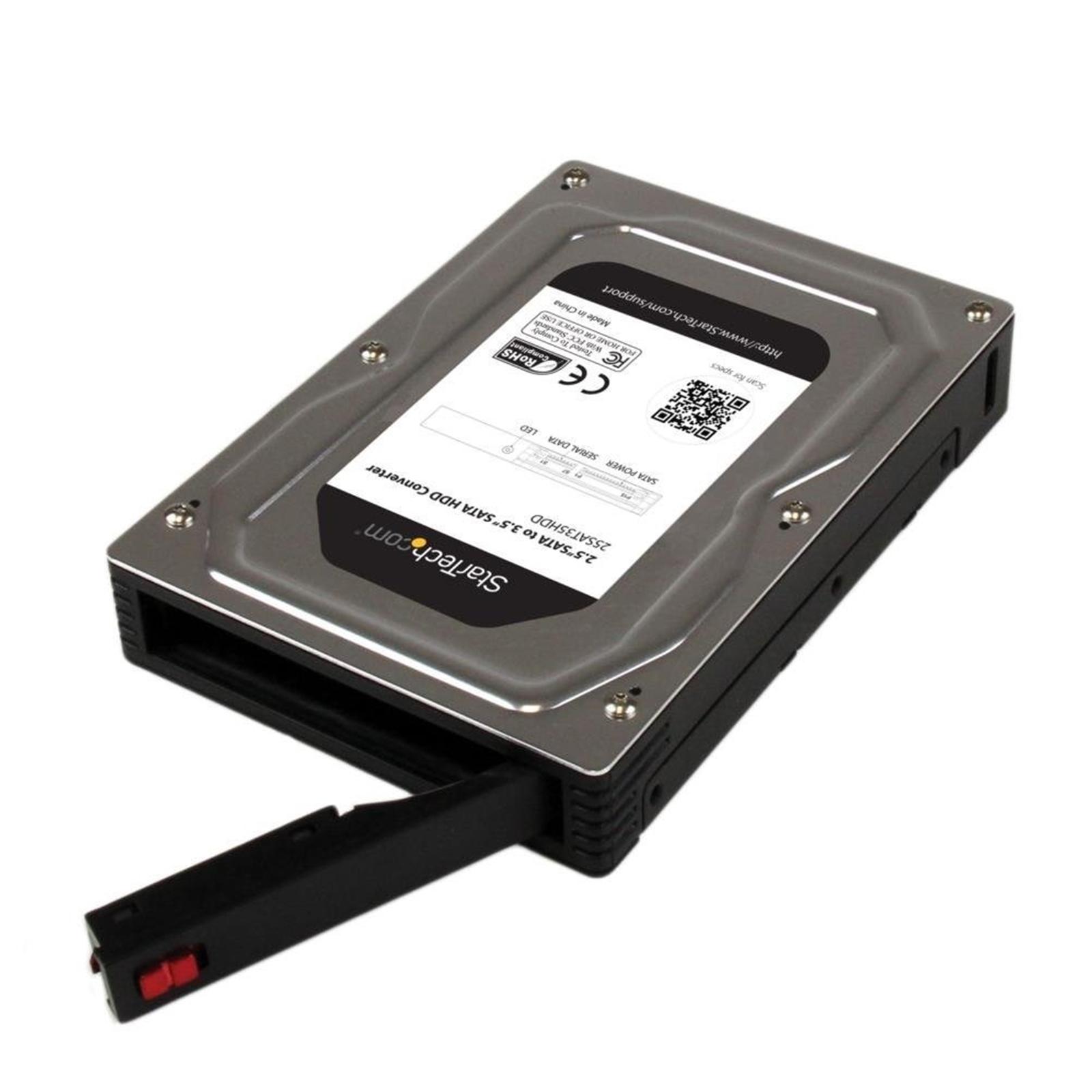

The 25SAT35HDD 2.5" to 3.5" hard drive adapter enclosure turns a 2.5" SATA hard drive (HDD) or solid state drive (SSD) into a 3.5" drive.
The adapter enclosure lets you substitute a 3.5" hard drive for a 2.5" SSD/HDD in any application that would typically require a 3.5" drive, such as desktop chassis, backplane, or docking station. The enclosure has the same dimensions as a standard 3.5" hard drive, including mounting points, and SATA connector locations.
With support for drives up to 12.5mm in height, and high-capacity SATA I/II/III drives (tested up to 1TB) this HDD adapter ensures compatibility with virtually any 2.5" SATA hard drive or solid state drive.
The 25SAT35HDD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Seamless 2.5" SSD/HDD integration with standard 3.5" hard drive dimensions
- Maximum drive compatibility with support for SSDs/HDDs up to 12.5mm in height
- Improve the performance speed of any 3.5" hard drive application by adapting a 2.5in solid state drive
Warranty Information
Warranty: 2 Years
Hardware
Drive Installation: Removable
Drive Size: 2.5in
Interface: SATA
Number of 2.5 inch bays: 1
Number of Drives: 1
Performance
Max Drive Capacity: Currently tested with up to 1TB 7200 RPM hard drives
Type and Rate: SATA III (6 Gbps)
Connector(s)
Drive Connectors: 1 - SATA Data & Power Combo (7+15 pin)
Host Connectors: 1 - SATA Data & Power Combo (7+15 pin)
Environmental
Humidity: 5% - 85% RH
Operating Temperature: 5°C to 55°C (32°F to 131°F)
Storage Temperature: 5°C to 55°C (32°F to 131°F)
Physical Characteristics
Enclosure Type: Aluminum and Plastic
Max Drive Height: 12.5 mm [0.5 in]
Product Height: 36 mm [1.4 in]
Product Length: 146 mm [5.7 in]
Product Weight: 260 g [9.2 oz]
Product Width: 101.5 mm [4 in]
Packaging Information
Shipping (Package) Weight: 0.3 kg [0.6 lb]
What's in the Box
Included in Package:
1 - 2.5" to 3.5" SATA HDD/SSD Enclosure
1 - Screw kit
1 - Install Guide
Warranty:
2 Year Return To Base Warranty
|
CERTIFICATES
|
| RoHS compliance |
Y |
COLOUR
|
| Colour of product |
Black, Silver |
DATA TRANSMISSION
|
| Data transfer rate |
6 Gbit/s |
DESIGN
|
| Material |
Aluminium, Plastic |
| Colour of product |
Black, Silver |
| RoHS compliance |
Y |
| Product type |
HDD/SSD enclosure |
HARD DRIVE
|
| Maximum capacity |
1 |
MATERIAL
|
| Material |
Aluminium, Plastic |
OPERATIONAL CONDITIONS
|
| Operating relative humidity range |
5 - 85% |
| Storage temperature range (T-T) |
5 - 55 °C |
| Operating temperature range (T-T) |
5 - 55 °C |
PACKAGING CONTENT
|
| Cables included |
SATA |
PACKAGING DATA
|
| Package weight |
300 g |
| Packaging depth |
160 mm |
| Packaging height |
36 mm |
| Packaging width |
113 mm |
PERFORMANCE
|
| Data transfer rate |
6 Gbit/s |
PORTS & INTERFACES
|
| Cables included |
SATA |
STORAGE
|
| Maximum capacity |
1 |
| Storage drive size |
2.5" |
| Number of storage drives supported |
1 |
| Supported storage drive interfaces |
Serial ATA, Serial ATA II, Serial ATA III |
TECHNICAL DETAILS
|
| Material |
Aluminium, Plastic |
| Data transfer rate |
6 Gbit/s |
| Colour of product |
Black, Silver |
| Maximum capacity |
1 |
WEIGHT & DIMENSIONS
|
| Weight |
216 g |
| Package weight |
300 g |
| Height |
25.5 mm |
| Width |
47.5 mm |
| Depth |
101.5 mm |
| Packaging depth |
160 mm |
| Packaging height |
36 mm |
| Packaging width |
113 mm |
